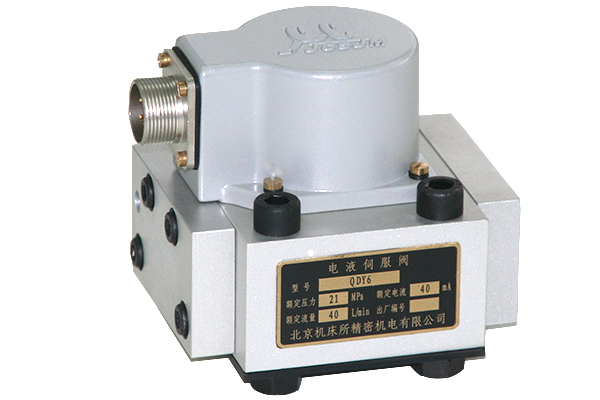

QDY6 nozzle flapper servo valve is a key control part of the electro-hydraulic servo control system, acting on electro-hydraulic conversion and power amplification. Our self-developed machines have been widely used in metallurgy, aerospace, shipbuilding, automobile, textile and printing industry.

1. QDY series servo valves are double nozzle flapper servo valve, which have great performance on fast dynamic response, pressure sensitivity and linearity, small zero drift, low required input. power.
2. The electrical feedback valve uses super hard aluminum alloy shell and have compact structure.
3. It is allowed to select the 5th oil port for controlling the pilot valve separately.

Component of QDY6 Nozzle Flapper Servo Valve
Electro-hydraulic servo valve is a closed-loop control system, which generally consists of electro-mechanical conversion, power amplifier, feedback.

1. Electro-mechanical conversion parts: in nozzle flapper servo valve, electro-mechanical conversion parts is a torque motor, the principle of operation is to convert the current of input coil swinging into the mechanical energy of the armature.

2. Power amplifier section: power amplifier is convert the input mechanical energy of the swing armature into the hydraulic energy of pressure and flow. In QDY series electrical feedback valve, the power amplifier is mostly achieved by flapper-structure.

3. Feedback: this part is to feedback the output pressure or flow to the preceding stage as the displacement, force or other forms. Due to this feedback mechanism, the servo valve itself is a closed-loop control system. QDY series servo valve is force feedback servo valve, to achieve the feedback function by bezel components.

Technical Parameters of QDY6 Nozzle Flapper Servo Valve

Supply oil pressure range
1.5 to 31.5
Rated supply oil pressure
Rated flow QN [L/min] (at valve pressure drop of 7MPa)
4, 10, 20, 40, 60
Rated current
15, 30, 40, 80
Non linearity
Pressure gain
Internal leakage
Zero drift of supply oil pressure(80 to 110% Ps)
Zero drift of return oil pressure(0 to 20% Ps)
Zero drift in temperature(-30 to +150)
Amplitude frequency width (-3db)
60 to 100
Phase frequency width (-90°)
60 to 100
Work temperature

-40 to +100
Net weight
