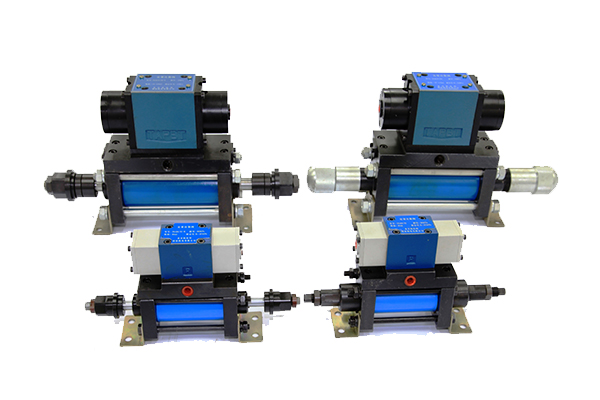

DLQ10/80 Grease Injection Valve

DLQ10/80 Grease Injection Valve

  • Features
  • Video
  • Download
  • Inquiry
Description
The DLQ10/80 grease injection valve covers the measuring cylinder, control component (reversing valve) and other parts, which has the features of quantitative precision, convenient quantitative adjustment. It is mainly used for the bearing, automobile semi-axle and other quantitative grease filling devices on the automatic control line.

Features
1. The grease quantitative valve shall be applied in the quantitative grease injection system, and used for quantitative supply of the dry oil lubricating grease.
2. The grease pressure is between 5MPa and 25MPa.
3. The grease injection system mainly consists of the grease pump, quantitative grease injection valve, pneumatic control pipeline, grease gun, etc.

Application Field of Grease Injection Valve
1. Bearing production line, fill grease before the sealed bearing gland
2. Automobile industry: skylight, doors, windows, seat sliding chute, rear view mirror and other grease injection positions
3. Semi-axle production line, filling of the semi-axle bearing grease
4. 3C industry: sliding chute of DVD, VCD, CD and other players
5. Bicycle parts industry
6. Motor, electric tools, gear, etc

Technical Parameter of Grease Injection Valve
Type
Item
DLQ10/80-1000 Grease Quantitative Valve
Grease injection range(g)
1000
Effective volume(ml)
1000
Quantitative precision(g)
±10
In place detection
No
Measuring cylinder diameter(mm)
80
Diameter(mm)
10
Oil inlet and outlet dimensions
ZG 3/8
Pressure resistance(MPa)
30
Working pressure(MPa)
5 to 25
Ambient temperature(ºC )
10 to 50
Control air pressure(MPa)
0.3 to 0.6
Control air port
ZG 1/8

Tag: Grease Dispense Valve | Air Pneumatic Grease Quantitative Valve | Air Pneumatic Grease Valve | Dosing Grease Valve
